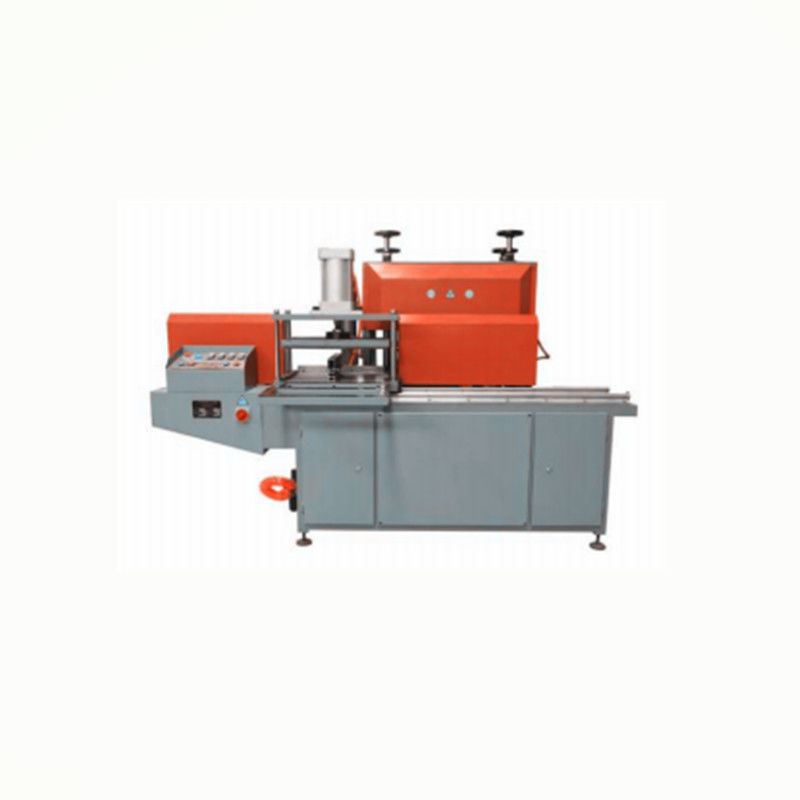

WINDOW MACHINE

Product Details

Place of Origin: CHINA

Brand Name: FEIDA

Model Number: DMX4-DW300

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Packaging Details: Non Fumigation Plywood Wooden Box

Delivery Time: 7-10 working days

Payment Terms: T/T

Supply Ability: 5000 PCS/Year

Get Best Price
Highlight:
Product Name:
WINDOW MACHINE
Power Supply:
380V 50Hz
Power:
2.2 Kw *2
Rotational Speed:
2800 R/Min
Weight:
350kg
Dimensions:
1700*760*1630(mm)
Motor Speed:
2840r / Min
Spindle Diameter:
30
Cutter Diameter:
160 / 200
Table Size:
510 * 370 Mm
Open The Maximum Depth Of Mortise Size:
55mm
Cutting Height:
68mm
Product Name:
WINDOW MACHINE
Power Supply:
380V 50Hz
Power:
2.2 Kw *2
Rotational Speed:
2800 R/Min
Weight:
350kg
Dimensions:
1700*760*1630(mm)
Motor Speed:
2840r / Min
Spindle Diameter:
30
Cutter Diameter:
160 / 200
Table Size:
510 * 370 Mm
Open The Maximum Depth Of Mortise Size:
55mm
Cutting Height:
68mm
WINDOW MACHINE

WINDOW MACHINE



Product Description



Performances and Features

--Applicable to all kinds of profile end, step surface forming
--This machine is mobile profile, that is moving stable, and the tool does not move;
--Tool can be regulated up and down, the adjustment adapt to different shapes and sizes of processing;
--Feed system is controlled by hydro-pneumatic damping device, stable and reliable;
--The whole structure is compact, easy to operate, large processing range, can process multiple profiles at the same time,
high production efficiency.



Machining precision

--Cutting surface perpendicularity 0.2 mm (100X100 mm section)
--Cutting surface flatness 0.2 mm (100X100 mm section)
--Cutting surface roughness Ra12.5 μm




Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!



WINDOW MACHINE 0WINDOW MACHINE 1WINDOW MACHINE 2WINDOW MACHINE 3WINDOW MACHINE 4WINDOW MACHINE 5



Detailed Photos

WINDOW MACHINE 6

Our Advantages

20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS



Packaging & Shipping

Non Fumigation Plywood Wooden Box

The after-sales service of our machines
No. Item Service
1 Service duration 7*24 Hours (All Weather Service)
2 Warranty period 1 year



FAQ





Q1: If I make Aluminum window and door, how many basic machines do i need?
A: Double head Cutting Saw ;

Copy Router Machine;
End Milling Machine;
Automatic Corner Connector Automatic Cutting Saw;
Single Head Corner Crimping Machine.

Q2: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness and working needed.
We will suggest the most suitable professional solution.

Q3: This is my first time using this kind of machine, is it easy to operate?
A: Of course, It is easy to operate.
We will send you the English version user manual and install video which
shows how to assembly and use clearly.
Don't worry! We will always be here to help!

Q4: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user
manual.
But in case you have any problem, we will provide you any support at any
time!
B: We can send you free components if your machines are in guarantee time.
C: We can send our engineers to repair your machines.

Q5: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirements,
we have researched many other different machines.

Q6: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit.
But customized machines should be more than 25 days.

Q7: What services can provide in your company?
A: Two years guarantee
B: Free training to operation and maintenance.
D: Free investment analysis for windows, doors and curtain wall project.
E: Free layout design for windows,doors and curtain wall production lines.
G: Provide technical support including pressure design and calculate for window
and curtain wall.
H: Quickly provide supply of spare parts
