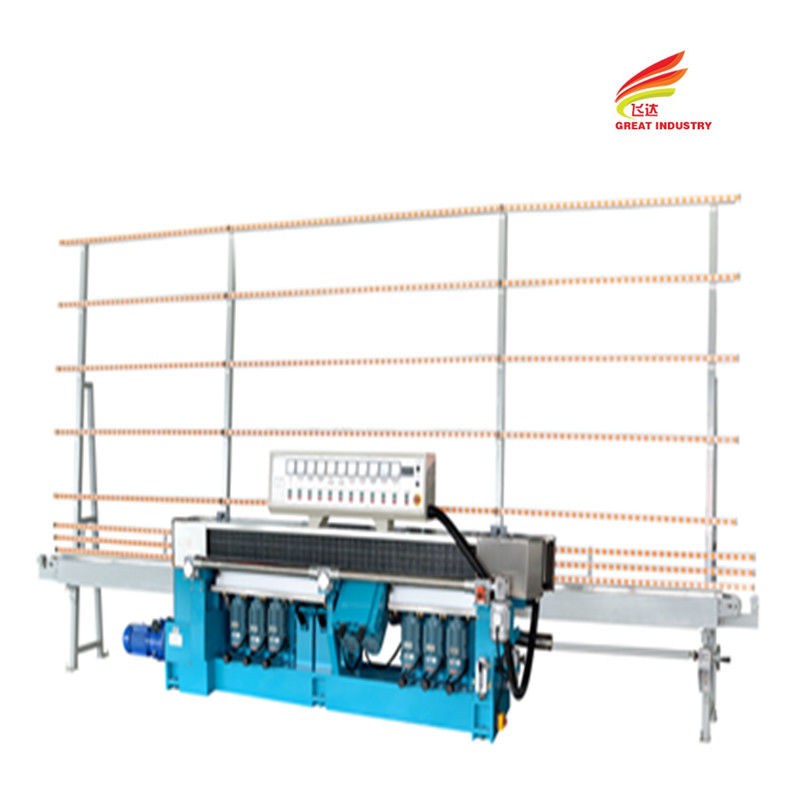

Name: GLASS ENGRAVING MACHINE GLASS EDGE POLISHING MACHINE CNC GLASS EDGING MACHINE
Brand: FEIDA
SKU: JMPG-DW9235
Rating: 4.7 (116 reviews)

Product Details

Place of Origin: CHINA

Brand Name: FEIDA

Model Number: JMPG-DW9235

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Packaging Details: Non Fumigation Plywood Wooden Pallet

Delivery Time: 25-30 working days

Payment Terms: T/T

Supply Ability: 5000 PCS/Year

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	GLASS ENGRAVING MACHINE GLASS EDGE POLISHING MACHINE CNC GLASS EDGING MACHINE	Power Supply:	380V 50Hz
Power:	18 Kw	Weight:	3300kg
Dimensions:	6900X1000X2500mm	Grinding Head Quantity:	9 Heads
Maximum Grinding Capacity:	3mm	Maximum Size Of Edges And Corners:	2.5 Mm
Processing Minimum Glass Size:	80mmx80mm	Thickness Of Glass:	3-25mm
Work Precision:	0.5mm/M

Product Name:	GLASS ENGRAVING MACHINE GLASS EDGE POLISHING MACHINE CNC GLASS EDGING MACHINE
Power Supply:	380V 50Hz
Power:	18 Kw
Weight:	3300kg
Dimensions:	6900X1000X2500mm
Grinding Head Quantity:	9 Heads
Maximum Grinding Capacity:	3mm
Maximum Size Of Edges And Corners:	2.5 Mm
Processing Minimum Glass Size:	80mmx80mm
Thickness Of Glass:	3-25mm
Work Precision:	0.5mm/M

GLASS ENGRAVING MACHINE GLASS EDGE POLISHING MACHINE CNC GLASS EDGING MACHINE

Product Description

Horizontal glass edging machines glass beveler glazing bevel glass shape beveling machine

Performances and Features

--It is used for grinding and polishing the bottom and edge of glass.
--Front and rear splints adopt chain splint transmission system. There are supporting columns in the middle of the front and rear beams. After slight
deformation of the waterproof front and rear beams for a long time, the clamping degree of the middle position is adjusted.
--Adopt mechanical frequency conversion motor, adjust processing speed, speed display for electronic digital display.
--The thickness of glass is electrically adjusted, and the thickness is displayed by mechanical skip meter.
--Stainless steel water tank, stainless steel hood.
--General de Drive straight edge grinding head motor.
--Coarse tooth synchronous belt conveyor system is adopted at inlet and outlet, and height adjustment system is adopted at inlet to set different
grinding quantity.
--The glass bracket adopts aluminum strip and the back side is reinforced square tube.
--The drainage adopts stainless steel integral drainpipe and inlet pipe.

Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!

Detailed Photos

Our Advantages

20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS

Packaging & Shipping

Non Fumigation Plywood Wooden Pallet

The after-sales service of our machines
No.	Item	Service
1	Service duration	7*24 Hours (All Weather Service)
2	Warranty period	1 year
