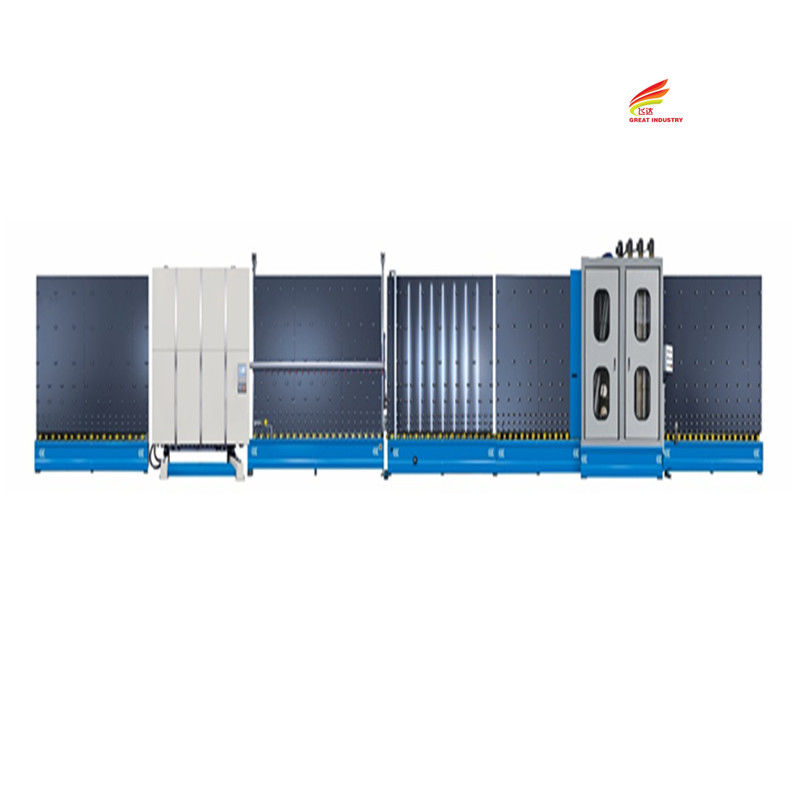

AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE

AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE

Product Details

Place of Origin: CHINA

Brand Name: FEIDA

Model Number: HPJ-DW2536

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Packaging Details: Non Fumigation Plywood Wooden Pallet

Delivery Time: 25-30 working days

Payment Terms: T/T

Supply Ability: 5000 PCS/Year

Get Best Price

Product Details

Product Description
Highlight:
Product Name:
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE
Power Supply:
380V 50Hz
Power:
32kw
Weight:
5500kg
Dimensions:
18550*3000*2900mm
Max. Glass Size:
2500*1800mm
Min Glass Size:
500*300mm
Pane Glass Thickness:
3~12mm
Max. Ig Unit Thickness:
12-40mm
Glass Washing Speed:
2-12m/Min
Working Speed:
2-45m/Min
Trip Dimension:
X: 0~150mm Y: 0~50mm
Product Name:
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE
Power Supply:
380V 50Hz
Power:
32kw
Weight:
5500kg
Dimensions:
18550*3000*2900mm
Max. Glass Size:
2500*1800mm
Min Glass Size:
500*300mm
Pane Glass Thickness:
3~12mm
Max. Ig Unit Thickness:
12-40mm
Glass Washing Speed:
2-12m/Min
Working Speed:
2-45m/Min
Trip Dimension:
X: 0~150mm Y: 0~50mm
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE

AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE

Product Description


Glass machine making glass machinery processing glass machinery processing double glazing double glazing machine


Performances and Features

--With inside and outside assembly function, powerful performance.
--Siemens PLC control system, HMI touch screen, realize manual and automatic control.
--Automatic identification of coated glass and Low-E glass.
--Air knife adjusts automatically according to the glass thickness.
--The third conveyor can pre store glass, improve efficiency 6.
--Automatic process control program, save waiting time and improve efficiency.
--Two ways of panel pressing drive: servo and hydraulic ( optional ) , panel pressing pressure can be changed and controlled according to the size of glass with servo;
  simple, reliable, economical and co-nvenient with hydraulic.
--Suitable for double glass, triple glass, step glass and shaped glass.
--High standardization of spare parts, ensure long-term and stable per- formance of machines.


Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!

Detailed Photos
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE 0
Our Advantages
20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS

Packaging & Shipping
Non Fumigation Plywood Wooden Pallet


The after-sales service of our machines
No. ItemService
1Service duration7*24 Hours (All Weather Service)
2Warranty period1 year


FAQ
AUTOMATIC INSULATING GLASS CNC SEALING MACHINE INSULATING GLASS SEALING ROBOT INSULATING GLASS MACHINE 1
