Highlight:
Product Name: |

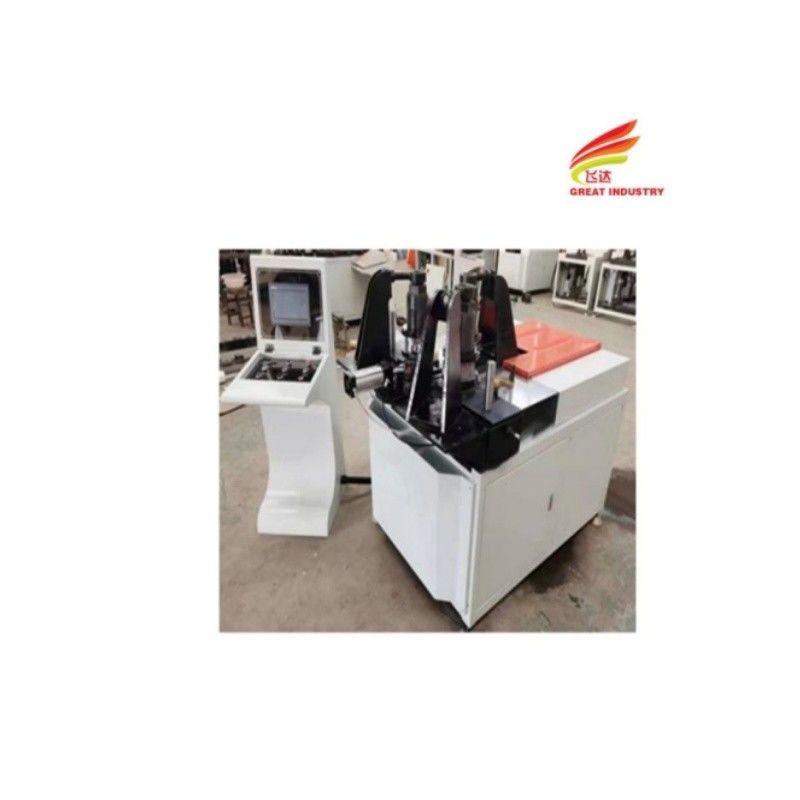

UPVC WINDOW MANUFACTURING MACHINE PIPE BENDING MACHINE ALUMINUM WINDOW BENDING MACHINE |
Power Supply: |
380V 50Hz |
Power: |
11.0kw |
Weight: |
1400kg |
Dimensions: |
1800*1200*1400mm |
Y Axial Hydraulic Thrust: |
30t(Max:40t) |
Repeat Positioning Accuracy Of Y Axis: |
0.02mm |
Maximum Diameter Of Roller Die: |
280m |
Spindle Diameter: |
80mm |
Three Shaft Speed: |
1-15r/Min |
Maximum Stroke Of Upper Wheel: |
300mm |
Axial Spacing: |
390-650mm |
Minimum Bend Radius: |
120mm |
Repeated Positioning: |
0.01 Mm |
Arc Bending Accuracy: |
5-6mm |
UPVC WINDOW MANUFACTURING MACHINE PIPE BENDING MACHINE ALUMINUM WINDOW BENDING MACHINE
PVC WINDOW MANUFACTURING MACHINE PIPE BENDING MACHINE ALUMINUM WINDOW BENDING MACHINE
Product Description
Performances and Features
-- It is mainly for bending aluminum/PVC/steel profiles
-- All kinds of special-shaped aluminum/PVC/steel, rectangular steel pipe bending operations, bending a variety of shapes (C, U, O, Oval, 3R
combination, etc.)
-- It is a ideal processing machine of Auto parts, LED lights, Furniture, Cabinets, Mirrors and other industries
--Four-axis positioning system, forming a closed space in the deformation area, to minimize the distortion of the profile.
--For all kinds of spraying, electrophoresis, electroplating, drawing and other surface treatment profile can be directly bent, will not appear the same as the ordinary
bending wave, broken line and scratches. The technology can reach the international advanced standard.
--Automatic control of circular arc with variable curvature can be realize.
--The device with 3 drive rollers, all of the driving wheel. This prevents the profile from slipping in the roller.s
--The spindle diameter of 50mm, hydraulic pressure up to 30 tons.
--All drive shafts are equipped with tapered roller bearings, reasonable design and smooth operation.
--Three groups of rollers are controlled by CNC numerical control device, move steadily and can position. Positioning accuracy: +/- 0.02mm.
--We set the drive wheel spacing according to user needs, can be adjusted in different positions, so that, two roller position can be adjusted
into different spacing.
--Curved arc processing once molding, do not need repeated processing, high efficiency.
--With the amount of material rebound intelligent calculation and compensation functions. For different radius of the arc, the device can
automatically calculate the amount of spring back. This eliminates the need to waste too much material and time when bending different
arcs.
--the device can store a certain amount of programs (depending on the memory space), and can be entered in the program as much as
possible detailed information for the convenience of the next use of easy identification.
--It can bend a variety of aluminum: ordinary aluminum, broken aluminum bridge, aluminum-plastic, steel and so on
--The equipment used to place horizontal to adapt to different sizes and weight profiles.
--It can be manual or automatic control, flexible operation.
--Each program step can be set to a variety of different feed rates, which greatly enhance the quality of the work piece and meet the
productivity requirements.
--The mold is simple and practical, can bend a small radius of 250mm aluminum will not produce fold deformation.
Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!
Detailed Photos
Our Advantages
20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS
Packaging & Shipping
Non Fumigation Plywood Wooden Box
| The after-sales service of our machines |
| No. |
Item |
Service |
| 1 |
Service duration |
7*24 Hours (All Weather Service) |
| 2 |
Warranty period |
1 year |
FAQ
Q1: If I make Aluminum window and door, how many basic machines do i need?
A: Double head Cutting Saw ;
Copy Router Machine;
End Milling Machine;
Automatic Corner Connector Automatic Cutting Saw;
Single Head Corner Crimping Machine.
Q2: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness and working needed.
We will suggest the most suitable professional solution.
Q3: This is my first time using this kind of machine, is it easy to operate?
A: Of course, It is easy to operate.
We will send you the English version user manual and install video which shows how to assembly and use clearly.
Don't worry! We will always be here to help!
Q4: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
But in case you have any problem, we will provide you any support at any time!
B: We can send you free components if your machines are in guarantee time.
C: We can send our engineers to repair your machines.
Q5: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirements, we have researched many other different machines.
Q6: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit. But customized machines should be more than 25 days.
Q7: What services can provide in your company?
A: Two years guarantee
B: Free training to operation and maintenance.
D: Free investment analysis for windows, doors and curtain wall project.
E: Free layout design for windows,doors and curtain wall production lines.
G: Provide technical support including pressure design and calculate for window and curtain wall.
H: Quickly provide supply of spare parts
