ALUMINUM PROFILE CUTTING MACHINE UPVC WINDOW DOOR MACHINE ALUMINIUM WINDOW CUTTING MACHINE

ALUMINUM PROFILE CUTTING MACHINE UPVC WINDOW DOOR MACHINE ALUMINIUM WINDOW CUTTING MACHINE

Product Description

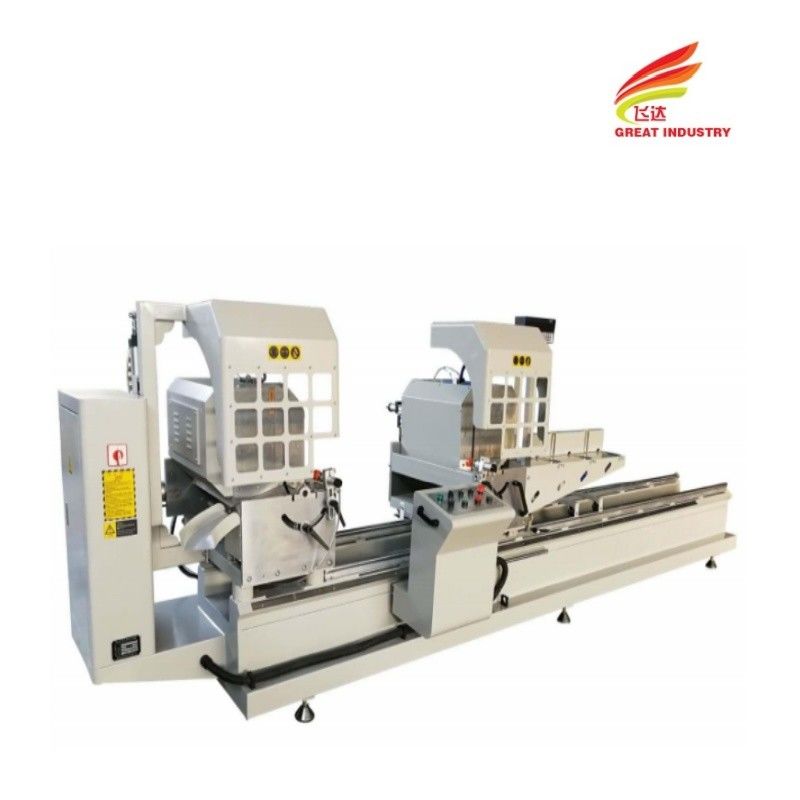

Aluminium double head mitre saw fabrication frame aluminum extrusion cutting machine

Performances and Features

• Applicable material: aluminum,thermal break profile and curtain wall profile.
• Hydro-pneumatic saw feed.
• Saw heads can be pneumatically tilted at outward 45 and 90 degrees.
• The one-piece cast and machined tilting shaft has no deformation after long-term use to ensure angular positioning accuracy.
• Equipped with high precision spindle motor.
• Servo-controlled right head positioning and feeding to ensure accuracy.
• Automatic profile height measurement.
• The CNC operating system provides four processing modes: Single, Form, Short, Corner cleat.
• Comes standard with three pneumatic lift stands for supporting the profile.
• 7 inch LCD touch screen color monitor.

Machining precision
-Repetition on length: ±0.2 mm
-Repetition on angle: ±5′
-Verticality of cutting surface: 0.1 mm(100×100 mm section)
-Planeness of cutting surface: 0.1 mm(100×100 mm section)

Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!

Company Profile

--SINCE 2002
--We can customize the most special equipment for each customer We support EM and ODM.

Detailed Photos

Our Advantages

20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS

Packaging & Shipping

Non Fumigation Plywood Wooden Box

FAQ

Q1: If I make Aluminum window and door, how many basic machines do i need?
A: Double head Cutting Saw ;
Copy Router Machine;
End Milling Machine;
Automatic Corner Connector Automatic Cutting Saw;
Single Head Corner Crimping Machine.

Q2: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness and working needed.
We will suggest the most suitable professional solution.

Q3: This is my first time using this kind of machine, is it easy to operate?
A: Of course, It is easy to operate.
We will send you the English version user manual and install video which shows how to assembly and use clearly.
Don't worry! We will always be here to help!

Q4: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
But in case you have any problem, we will provide you any support at any time!
B: We can send you free components if your machines are in guarantee time.
C: We can send our engineers to repair your machines.

Q5: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirements, we have researched many other different machines.

Q6: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit. But customized machines should be more than 25 days.

Q7: What services can provide in your company?
A: Two years guarantee
B: Free training to operation and maintenance.
D: Free investment analysis for windows, doors and curtain wall project.
E: Free layout design for windows,doors and curtain wall production lines.
G: Provide technical support including pressure design and calculate for window and curtain wall.
H: Quickly provide supply of spare parts
