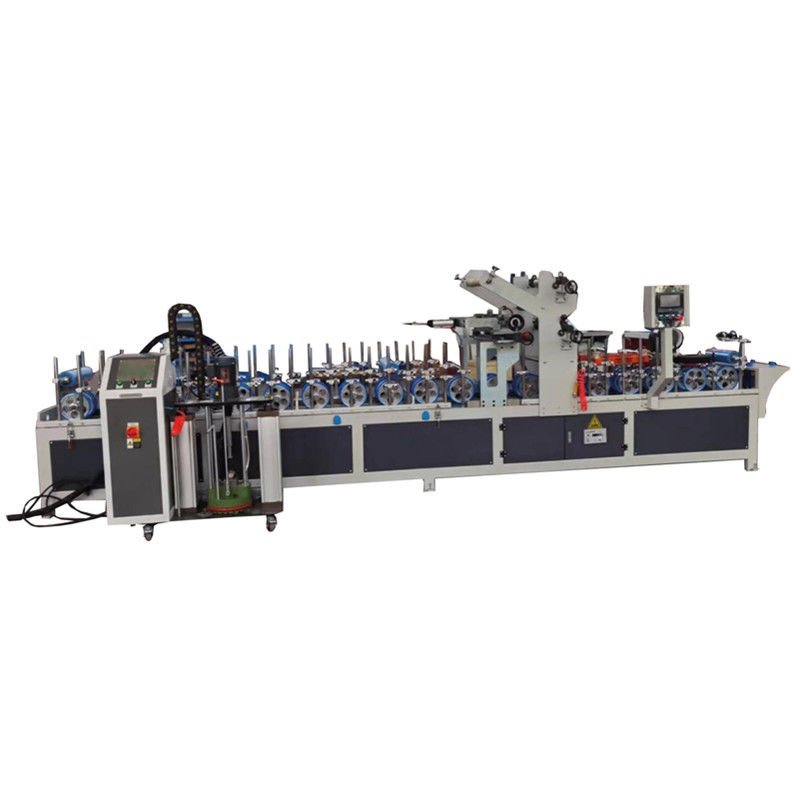

--Used for the surface coating of various flat plates and profiles. The principle is to apply adhesive to the back of the decorative film through a scraping system, and then use
a wrapping wheel to press the decorative film onto the surface of the board or profile.
--Feed pressure roller. It is used for feeding and conveying workpieces, the feeding pressure roller allows the workpieces to smoothly enter the wrapping machine. The roller
has a diameter of 110mm and is made of high wear-resistant silicone rubber roller, which is durable and suitable for PVC wall panel material, ensuring smooth
transportation without damaging the profile.
--Dust removal device (brush roller+hair dryer).Dust removal is carried out on the surface of the sheet metal using a brush roller driven by an independent motor to ensure
good on-site environmental hygiene; After dust removal by the brush roller, a hair dryer is installed to blow away the remaining capillary dust and ensure the cleanliness of
the product surface.
--Heating device.Heating uses carbon fiber heating tubes to heat the surface of the product, quickly raising the temperature to meet the lamination requirements and
improving the bonding effect.
--Conveying device. Adopting a worm gear box transmission method to ensure transmission accuracy and service life; The bottom conveyor wheel can be quickly adjusted
and adopts a chrome plated optical shaft, making it convenient to adjust the width of the bottom conveyor wheel to meet the transportation of products with different widths.
--Control system.
a) The control system includes: Taiwan Shilin frequency converters, various types of Chint low-voltage appliances such as relays, contactors, circuit breakers, etc.
b) The control system can achieve online connection between the sol machine and the coating host. When the operating speed of the coating host changes, the adhesive
amount automatically follows the change, saving materials and labor. The control system of the sol machine has system alarm and overpressure protection functions.
c) When there is a system malfunction, the touch screen of the control system can pop up a fault prompt and provide operation instructions.
--Double roll unwinding film. Adopting double air expansion shafts to roll and release film, and equipped with a digital magnetic powder tension controller, it is convenient to
operate, greatly saving time for film replacement and reducing waste of sheet metal.
--Machine configuration: consisting of feeding pressure roller, brush and blowing dust removal, substrate heating, double roll film release, glue scraping system (5 gallon
PUR sol machine+glue scraping gun), main wrapping pressing device, and electrical control.
Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!
Detailed Photos
Our Advantages
20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS
Packaging & Shipping
Non Fumigation Plywood Wooden Box
| The after-sales service of our machines |
| No. |
Item |
Service |
| 1 |
Service duration |
7*24 Hours (All Weather Service) |
| 2 |
Warranty period |
1 year
|
FAQ
Q1: If I make Aluminum window and door, how many basic machines do i need?
A: Double head Cutting Saw ;
Copy Router Machine;
End Milling Machine;
Automatic Corner Connector Automatic Cutting Saw;
Single Head Corner Crimping Machine.
Q2: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness and working needed.
We will suggest the most suitable professional solution.
Q3: This is my first time using this kind of machine, is it easy to operate?
A: Of course, It is easy to operate.
We will send you the English version user manual and install video which shows how to assembly and use clearly.
Don't worry! We will always be here to help!
Q4: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
But in case you have any problem, we will provide you any support at any time!
B: We can send you free components if your machines are in guarantee time.
C: We can send our engineers to repair your machines.
Q5: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirements, we have researched many other different machines.
Q6: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit. But customized machines should be more than 25 days.
Q7: What services can provide in your company?
A: Two years guarantee
B: Free training to operation and maintenance.
D: Free investment analysis for windows, doors and curtain wall project.
E: Free layout design for windows,doors and curtain wall production lines.
G: Provide technical support including pressure design and calculate for window and curtain wall.
H: Quickly provide supply of spare parts
